WildThing91

NEW! LTE-Bluetooth tracker and gateway module


  • Nordic nRF9160 & nRF52840 on board
  •
  • LTE-M, NBIoT, GPS, Bluetooth5, Zigbee, Thread
  •
  • Small footprint 40 x 32 mm Module
  •
  • Up to 42 programmable I/O on DF40 connector
  •

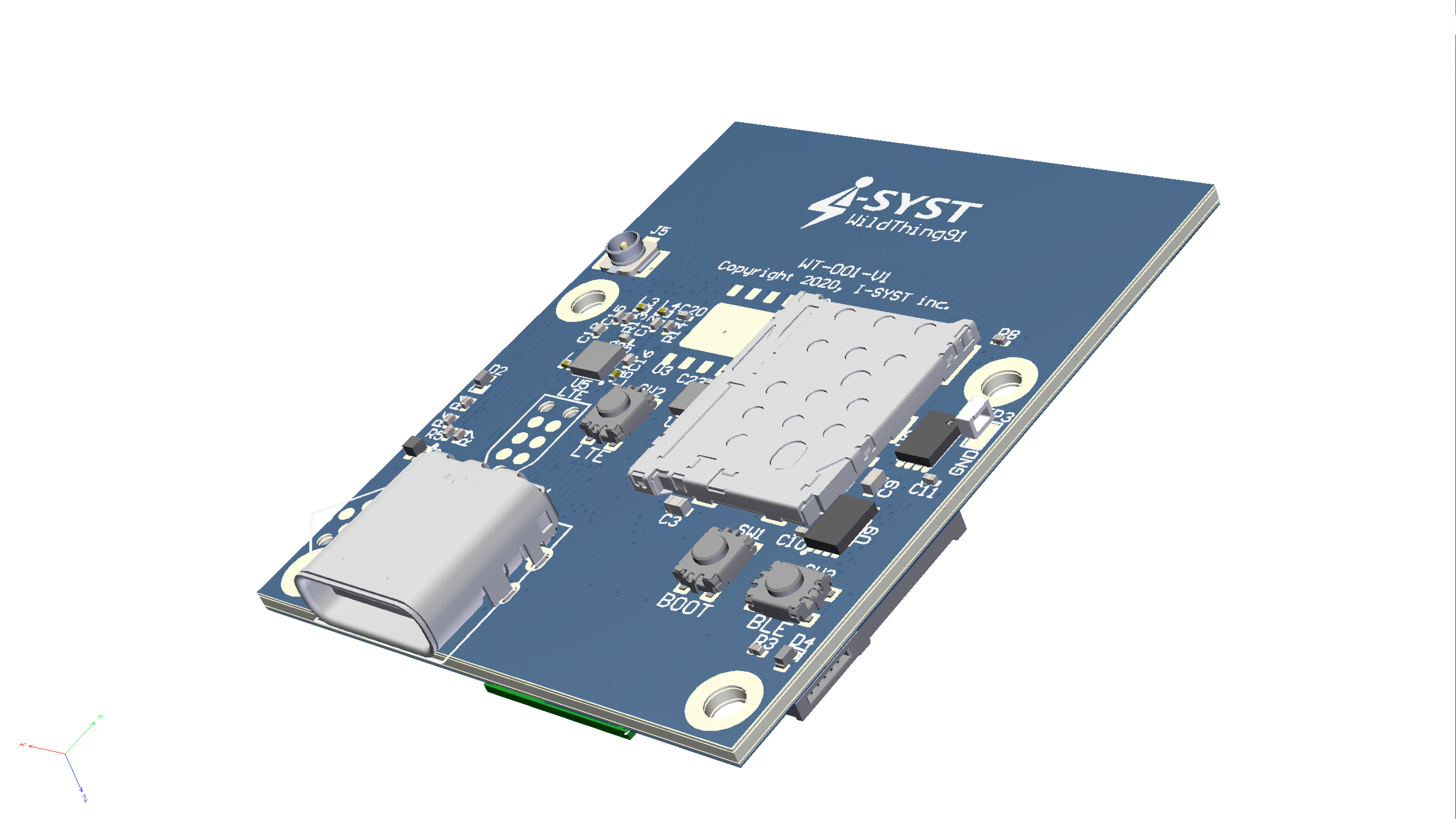

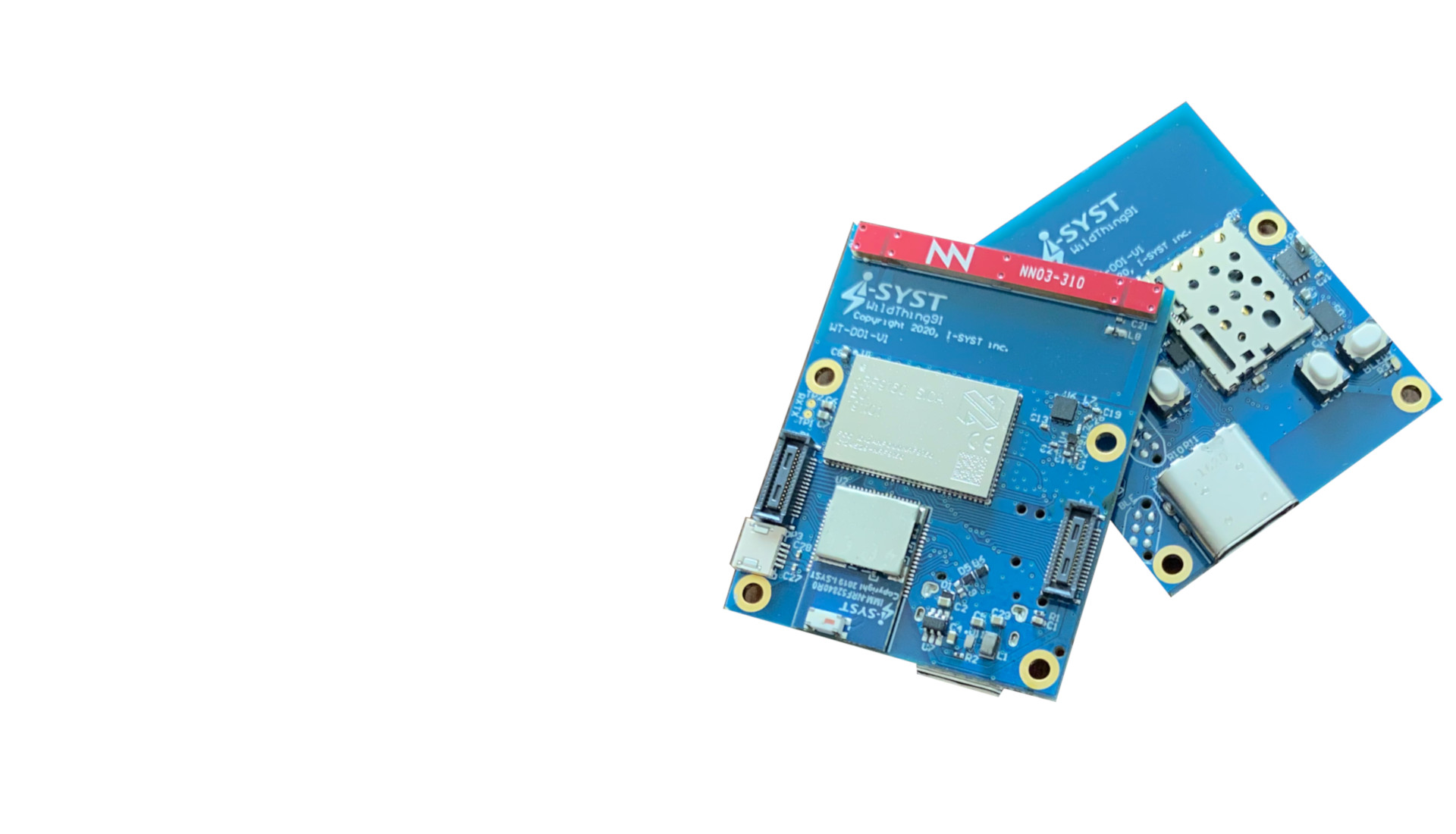

Wildthing91_Module

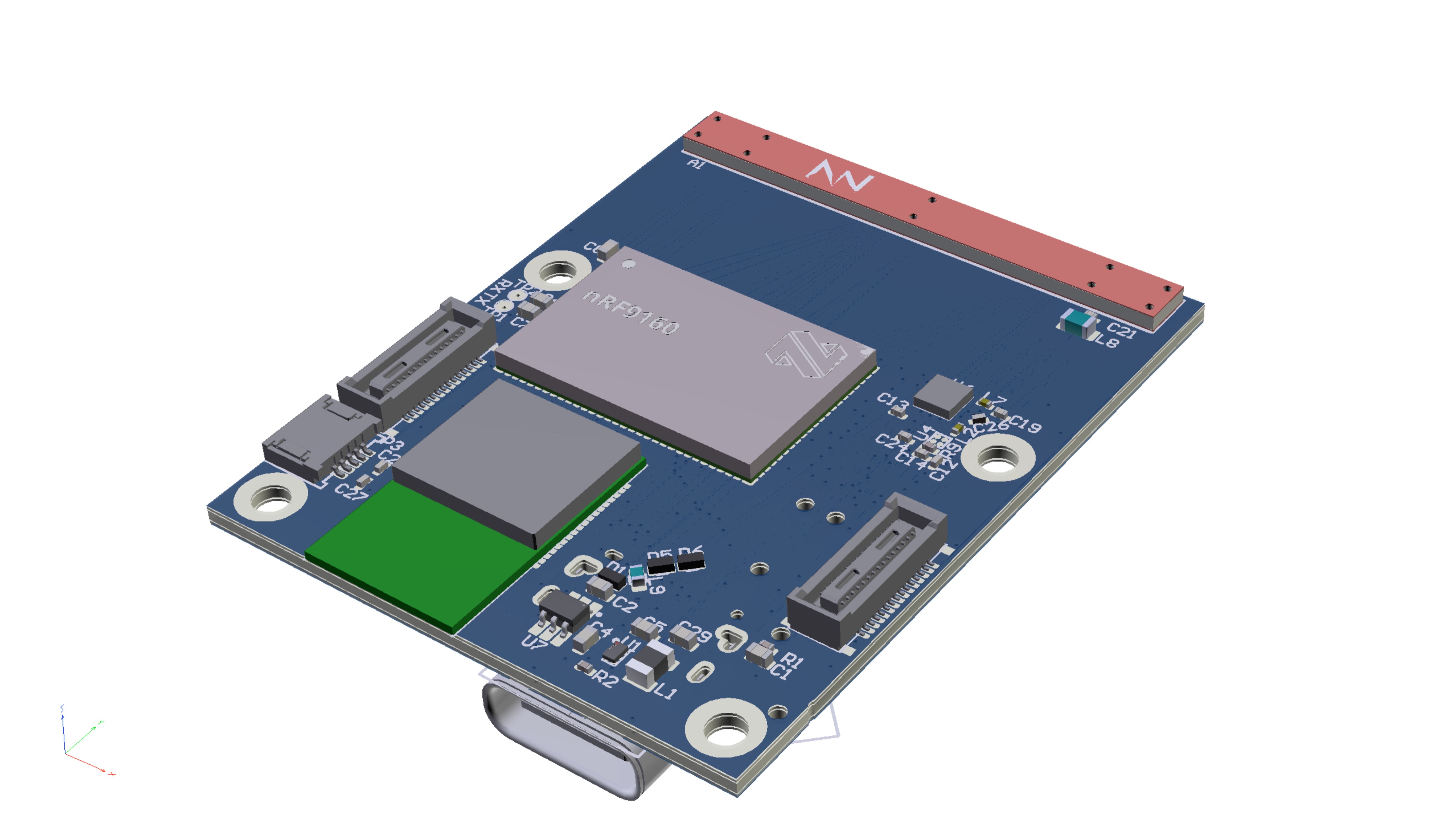

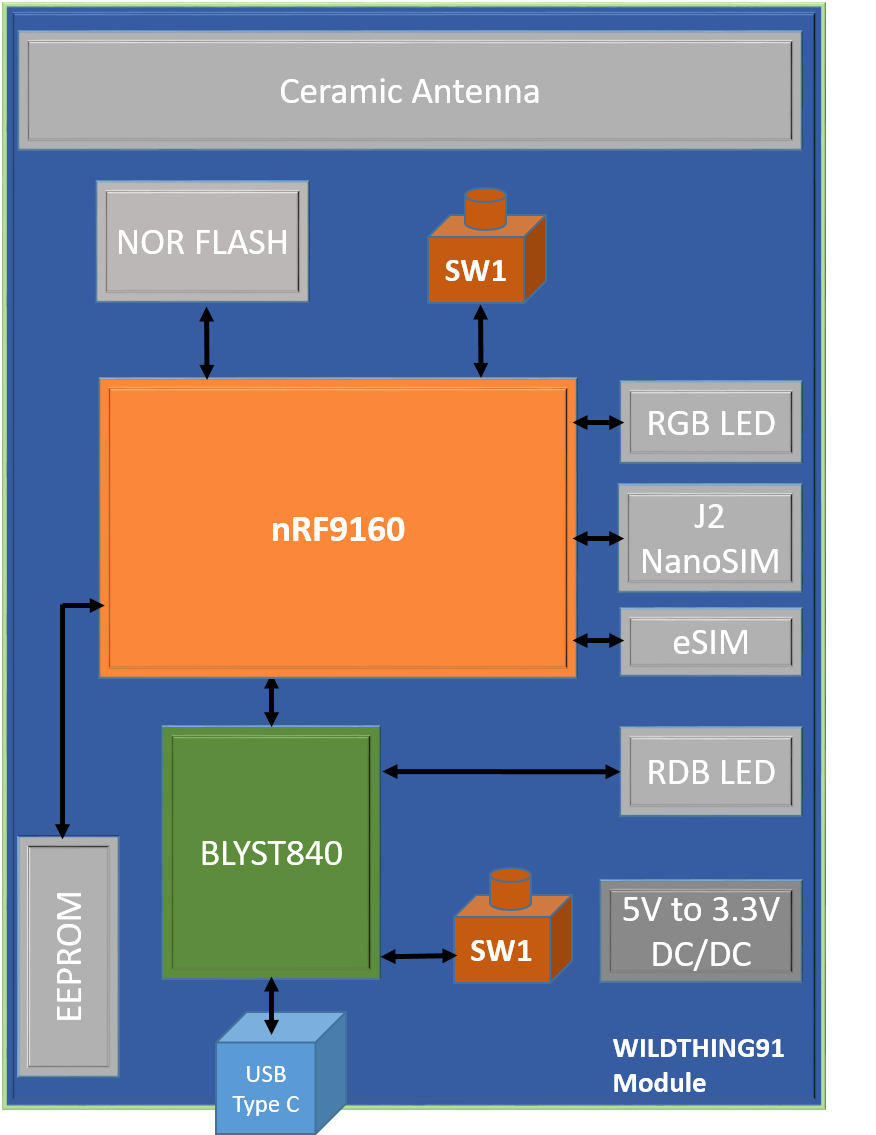

WildThing91 Components

  • BLYST840
  • EEPROM (U9)
  • NOR FLASH (U8)
  • RGB LED (D5)
  • J2 NanoSIM
  • eSIM (U3)
  • RDB LED (D4)
  • Button SW1
  • Button SW2
  • 5V to 3.3V DC/DC converter (U11)
  • USB Type-C


nRF9160 KEY FEATURES

  • Fully integrated SiP for cellular IoT
  • Dedicated application processor and memory
  • Multimode LTE-M/NB-IoT modem with integrated RFFE
  • Assisted GPS
  • Single variant certified for global operation
  • Certified LTE bands: B1, B2, B3, B4, B5, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28 and B66
  • Mobile network operator certifications: AIS, AT&T, Bell, China Telecom, Deutsche Telekom, Telstra, Verizon and Vodafone
  • Global and regulatory certifications: GCF, PTCRB, FCC, CE, ISED, ACMA RCM, NCC, IMDA, MIC, MSIP, IFT, ICASA, NBTC
  • Overview  of  all  certifications:  nordicsemi.com/9160cert
  • 10x16x1,04 mm LGA package

LTE-M/NB-IoT modem

  • Integrated RFFE
  • 700-2200 MHz LTE band support
  • 23 dBm output power
  • Assisted GPS
  • eDRX and PSM power saving modes
  • Coverage enhancement modes
  • SMS, IPv4/IPv6
  • Single pin 50 Ω antenna interface
  • UICC interface

Application processor

  • 64 MHz Arm® Cortex®-M33 CPU
  • Arm TrustZone® for trusted execution
  • Arm CryptoCell 310 for accelerated cryptography
  • 1 MB Flash & 256 KB RAM
  • 4 x SPI/UART/TWI
  • PDM, I2S, PWM, ADC
  • Automated power and clock management
  • 32 GPIOs

Application

  • Logistics and asset tracking
  • Smart city
  • Smart agriculture
  • Predictive maintenance & industrial
  • Wearables & medical



nRF9160 KEY DATA



LTE-M/NB-IoT modem

Frequency range

700-2200 MHz

Throughput

(UL/DL)

LTE-M:      300/375 kbps

NB-IoT:   30/60 kbps

Output power

Up to 23 dBm

RX sensitivity

LTE-M:      -108 dBm

NB-IoT:  -114 dBm

GPS: -155 dBm

Mode

HD-FDD

Application processor

CPU

64 MHz Arm Cortex-M33

Arm TrustZone

Flash

1 MB

RAM

256 KB

Peripherals

Arm Cryptocell 310

3 x TIMER, 2 x RTC WDT

Interfaces

4 x SPI (M/S) / UARTE / TWI (M/S)

4 x PWM, PDM, I2S

12 bit/200 ksps ADC

Current consumption (23 dBm TX power, 3.7 V supply)

PSM floor current

LTE-M:      2.7 uA

NB-IoT:  2.7 uA

eDRX, 655 seconds

LTE-M:      6 uA

NB-IoT:  9 uA

Operating conditions and package

Supply voltage

3.3-5.5 V

Temperature

-40-85 °C

Package

10x16x1,04 mm LGA




  • Geolocation
    • A GPS receiver is integrated into the radio offering various modes of operation to suit a wide selection of applications that employ location-tracking functionality
  • IoT
    • Smart Home products
    • Industrial mesh networks
    • Smart city infrastructure
  • Interactive entertainment devices
    • Advanced remote controls
    • Gaming controllers
  • Advanced wearables
    • Connected watches
    • Advanced personal fitness devices
    • Wearables with wireless payment
    • Connected Health
    • Virtual/Augmented Reality applications
